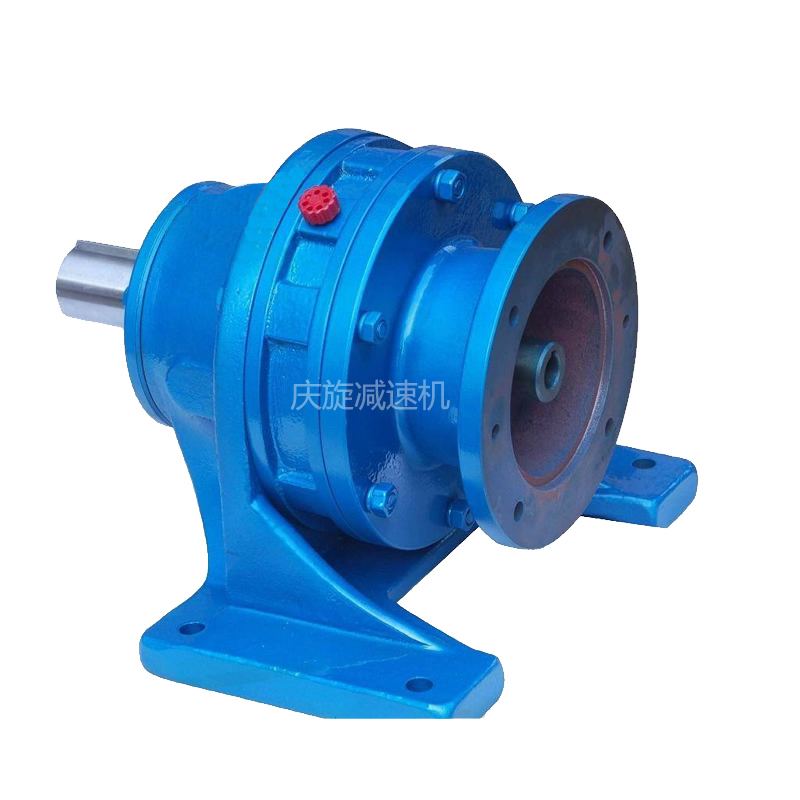

The WB cycloidal pinwheel reducer is a mechanical device that uses the principle of planetary transmission with few tooth differences to achieve deceleration through cycloidal pinwheel meshing. The machine is divided into horizontal, vertical, double axis, and direct connection assembly methods. The WB series cycloidal pinwheel reducer has been widely used in fluid, metallurgy, mining, electricity, environmental protection, rubber and plastic, textile, printing and dyeing, wood processing, ceramics, elevators, wind power, roads, bridges, docks, production lines, papermaking, printing, packaging, food, grain and oil processing, metal processing, sewing, molds, high-altitude operations, lifting, etc The mechanical equipment field in the lifting and other industries.

Parameters:
Power: 0.04-3k
Torque: 25~250N. m
Transmission ratio: 9-1849
Parameters: Remarks: Can be installed with feet or flanges, and can be equipped with various types of motors or dual shaft types
Features:

1. Structural principle: Planetary transmission uses cycloidal gears and needle teeth to mesh internally, forming a small tooth difference internal meshing reduction mechanism, which transmits the input speed coaxially in reverse and decelerates.
2. Features: High speed ratio, using planetary transmission principle with small volume and no axial force.
3. Installation type and output method: base type, flange type, solid shaft output.
4. Input methods: direct motor, solid shaft, flange input.
5. Reduction ratio: First stage 9-87, second stage 99-5133.
6. Average efficiency: First level 90%, second level 88%.
